Neck and Bridge pickups together

Is there a way to wire the Strat switch so you can get both Bridge and Neck pickup at the same time ala mid position on a Tele ?

__________________
Steve
asc67 is offline   Reply With Quote

Old February 17th, 2009, 05:14 PM   #2 (permalink)
Strat-O-Master

Axis29's Avatar

Join Date: Mar 2007
Location: Stafford, Virginia
Age: 46
Posts: 706

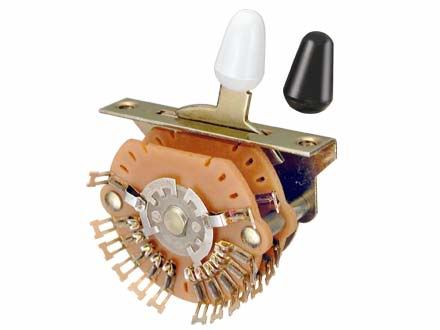

Not a stock 5-way. But you can pick up a Super switch and do it. These are installed in the CP50's strats. This method looses one other position however.

A better option is to get a push-pull pot and wire it so you can turn the bridge pickup on in any switch position.

I am seriously contemplating changin my CP50's strat to this configuration. I like the bridge and neck pickups on together, but miss the fat quack of the middle and neck pickups together.
__________________
John F.
Axis29 is offline   Reply With Quote

Old February 17th, 2009, 05:27 PM   #3 (permalink)

thaus's Avatar

Join Date: Jul 2007
Location: London Canada
Posts: 9,949
Check out Deaf eddie's site for a ton of wiring schemes.....

http://www.deaf-eddie.net/drawings/s...all-series.jpg

I have a couple of strats with the blender wiring like this.........sounds so good that I am making all of them like this eventually!

http://www.fralinpickups.com/images/blendschem2.jpg

You do need a blender pot (no load) though in place of the lower tone control. You can find those here..........

Guitar Parts Resource* ::* GENUINE FENDER POTENTIOMETERS
thaus is offline   Reply With Quote

Sponsored Links   #
Sponsored posting


Old February 17th, 2009, 05:35 PM   #4 (permalink)
Senior Stratmaster

ArlenBucy's Avatar

Join Date: Nov 2008
Location: Plant City, FL
Age: 30
Posts: 1,563
I was gonna say blender as well. That way can blend just a little of the neck in or all of it. Or none of it. You can also have all three pups with this too.
__________________
Fender... the cause and solution to all my problems.

www.myspace.com/arlenbucy


My new project:
http://www.myspace.com/thehillscountymenace
ArlenBucy is offline   Reply With Quote

Old February 17th, 2009, 05:37 PM   #5 (permalink)
Strat-O-Master

patl's Avatar

Join Date: Dec 2008
Location: North Bend, WA
Age: 45
Posts: 801
Which position is usually lost?
__________________
Dakota Red GE Smith Tele, White Blonde Eric Johnson Strat, Reverend Charger 290 Goldtop, Washburn Laredo LT-92 Tele, Agile AL-3000 Goldtop, Goodall Concert Jumbo
There is nothing in the world so much like prayer as music is. ~William P. Merrill
patl is offline   Reply With Quote

Old February 17th, 2009, 05:43 PM   #6 (permalink)
Strat-Talker

PorkRollExpress's Avatar

Join Date: Jan 2009
Location: Hoboken, NJ
Age: 41
Posts: 311
^^ If it's done via the switch, you'll lose a position. Which one? Well, whichever configuration you choose to eliminate, in favor of wiring this one in it's place.

If it's with a Blend pot, you have no such problem. you would best wire the first tone as a master, though, because the blend pot replaces the lower tone pot
__________________
I'm a Lead-Farmer, mothe****er
PorkRollExpress is offline   Reply With Quote

Old February 17th, 2009, 05:53 PM   #7 (permalink)
Senior Stratmaster

asc67's Avatar

Join Date: Jul 2008
Location: Minnesota
Age: 47
Posts: 1,111
Thanks, So with the blender the top tone control works for all three pickup and the lower tone/ blender blends in the Bridge pickup plus whatever other pickup is on the selector switch ?
__________________
Steve
asc67 is offline   Reply With Quote

Old February 17th, 2009, 05:56 PM   #8 (permalink)
Strat-Talker

Join Date: Jan 2009
Location: Surrey, B.C.
Age: 59
Posts: 272
Quote:
Originally Posted by thaus View Post
You do need a blender pot (no load) though in place of the lower tone control. You can find those here..........

Guitar Parts Resource* ::* GENUINE FENDER POTENTIOMETERS
You can do blending with just a Fender no-load pot? I am not doubting you, I just didn't realize it could be done with one of those, I thought there was a specific pot for it. Hmm, I just happen to have a few of the Fender no-loads around right now waiting to go in my Strats, I may have to give this a try and see how it works.

Thanks!

...Greg
GregP is offline   Reply With Quote

Old February 17th, 2009, 06:02 PM   #9 (permalink)
Strat-Talker

PorkRollExpress's Avatar

Join Date: Jan 2009
Location: Hoboken, NJ
Age: 41
Posts: 311
Yep. But you have to purposely wire the top tone control to affect all pickups.

Some strats (say, MIM standard) have: Master Volume, Tone 1. (Neck Pickup), and
Tone 2. (Middle Pickup).

You'd have to send the M and B pickups to that tone#1 pot in addition to adding the blended.
__________________
I'm a Lead-Farmer, mothe****er
PorkRollExpress is offline   Reply With Quote

Old April 1st, 2009, 04:24 PM   #10 (permalink)
Strat-Talk Member

Join Date: Mar 2009
Location: pleasant valley ny
Age: 59
Posts: 16
Buy a 250k pushpull pot you can use it for any pot you can find the wiring diagram on dimarzio's web site or rothstein guitars. I use it on one of my strats . I'm very happy with it
DRJIMMIE is offline   Reply With Quote

Old April 1st, 2009, 04:28 PM   #11 (permalink)
Senior Stratmaster

hendrixfan's Avatar

Join Date: Jan 2009
Location: England
Age: 43
Posts: 1,698
i started a thred asking same question got some good advice and diagrams of other members here

http://www.strat-talk.com/forum/stra...ions-help.html
hendrixfan is offline   Reply With Quote

Old April 1st, 2009, 05:07 PM   #12 (permalink)
Senior Stratmaster

Sprocket's Avatar

Join Date: Jul 2008
Location: De'ville, Florida
Age: 42
Posts: 2,888
To the original poster, PM me with your address and I will send you my blender set up(switch, pots, & cap wired and ready to go) its only months old in my partscaster...Ive tried Keystones and now Tex-Mex in there, maybe something with a hotter bridge pup would work better for me...but none the less Im over it and ready to go back to more standard Strat wiring.
In another forum, before doing the mod myself, Id read a gentleman refer to it as "it sounds much better on paper"...and I find this best describes it, even though others may disagree(they dont have to play my guitar)...

...so its free to the original poster(if you want it, just PM me) and this will give me the motivation to get the ball rollin on my project.

Sprocket is offline   Reply With Quote

Old April 2nd, 2009, 05:53 AM   #13 (permalink)
Strat-Talker

Lowdown's Avatar

Join Date: Jan 2009
Location: Sydney,Australia
Age: 44
Posts: 468
Good on you Sprocket! That's the spirit.
__________________
He's not the Messiah! He's a very naughty boy.

http://www.soundclick.com/bands/page...?bandID=959102
Lowdown is offline   Reply With Quote

Old April 2nd, 2009, 06:04 AM   #14 (permalink)
Strat-Talk Member

Join Date: Mar 2009
Location: pleasant valley ny
Age: 59
Posts: 16
http://www.guitar-mod.com/wiring/neck_on_howto.gif
I TRIED TO GET THIS LINK TO WORK FOR YOU BUT HERES THE ADDRESS.
JUST WIRE THE POT SIDE AS NORMAL POT .
FOLLOW WIRING DIAGRAM TO WIRE SWITCH NOW YOU HAVE 7 POSITIONS.
PULL UP POT WHEN ON POS. 1 NOW NECK AND BRIDGE ARE ON MOVE TO 2 NOW ALL PUPS ARE ON. PUSH SWITCH DOWN AND YOU'RE BACK TO NORMAL.IT TRULEY WORKS GREAT. HOPE THIS HELPED

Last edited by DRJIMMIE; April 2nd, 2009 at 06:06 AM. Reason: MISSPELLING
DRJIMMIE is offline   Reply With Quote

Old April 2nd, 2009, 03:03 PM   #15 (permalink)
Strat-Talker

stratagem's Avatar

Join Date: Mar 2009
Location: College Station, TX
Age: 29
Posts: 498
I have a Player's Deluxe Strat. This model is stock with a push button just between the two tone knobs which adds the bridge pup to the neck and neck-mid positions.

The David Gilmour Signature CS model has a recessed micro-switch that does the opposite and adds the neck pup when flipped.

Here's an ebay posting of the Gilmour switch kit:
David Gilmour Black Strat Recessed Toggle Switch Mount - eBay (item 280325367127 end time Apr-20-09 19:34:02 PDT)
stratagem is offline   Reply With Quote

Old April 2nd, 2009, 04:07 PM   #16 (permalink)
Strat-Talker

moondance360's Avatar

Join Date: Feb 2009
Location: Dallas, Tx.
Age: 61
Posts: 489
Send a message via Yahoo to moondance360
Blender Pot wiring diagram for neck pickup.


The Classic 50s Player Strat is wired with a 5-way Super Switch. Sadly, Fender does not share the schematic for this online. However, I will......


__________________
Then Play On
moondance360 is offline   Reply With Quote

Old April 2nd, 2009, 07:41 PM   #17 (permalink)
Suspended

Join Date: Jan 2009
Location: Minneapolis
Posts: 1,806
Quote:
Originally Posted by stratagem View Post
The David Gilmour Signature CS model has a recessed micro-switch that does the opposite and adds the neck pup when flipped.

Here's an ebay posting of the Gilmour switch kit:
David Gilmour Black Strat Recessed Toggle Switch Mount - eBay (item 280325367127 end time Apr-20-09 19:34:02 PDT)
Well if I only knew there was a kit!



I did this on my own at Home Depot and ACME. Ran me half as much and it's a little better constructed. But nice to see.
midifarm is offline   Reply With Quote

Old April 2nd, 2009, 07:53 PM   #18 (permalink)
Strat-Talker

Join Date: Jul 2008
Location: Sacramento
Posts: 199
I did the Gilmour type switch too.









I fabbed my own bracket but if your interested in this type of setup I found a great source for the switch & mounting bracket.

Item #4022 - Custom Stainless Steel Recessed Toggle Switch Mounting Bracket & SPST Toggle Switch for Fender Stratocaster Guitar
Toadlc is offline   Reply With Quote

Old April 3rd, 2009, 04:04 AM   #19 (permalink)
Strat-Talker

GoranS's Avatar

Join Date: Mar 2009
Location: Sweden
Age: 57
Posts: 105
This is how I did it: MyFolder.se/myspace/ - The Seven Sound Mod for the Fender® Highway One™ Stratocaster®

This setup suits me fine. It changes out position 2 and 4 to Bridge-Neck and Bridge-Mid-Neck keeping the 1, 3, 5 positions intact. Also includes a well defined tone control layout.
__________________
GoranS musicbox:
http://www.soundclick.com/bands/page...?bandID=753091
GoranS stratpage:
http://myfolder.se/myspace/
GoranS is offline   Reply With Quote

Old April 3rd, 2009, 04:43 AM   #20 (permalink)
New Member!

Join Date: May 2008
Location: U. K.
Posts: 6
Re-Neck and Bridge pickups together

I have installed a 3 way rotary switch on my 62 Strat re-issue.
The top tone control is wired to all 3 pickups i e a master tone control.
The bottom tone control has been removed and replaced with a 3 way rotary switch.
1 Fully anticlockwise as - normal Strat.
2 Middle position - Adds Bridge pickup to 5 way switch.
3 Fully clockwise - Adds Bridge and Middle pickups as a series Humbucker to a 5 way switch.
The best bit about this modification is with the Volume and Tone knobs,it looks like a normal Strat and no one knows the difference until you start using the rotary switch. I've played many a gig when other guitarists try to work out how I can get my Strat to sound like a Tele or how my Strat pickups sound like Humbuckers.
Hope this information helps.
Tombhoy
tombhoy is offline   Reply With Quote
